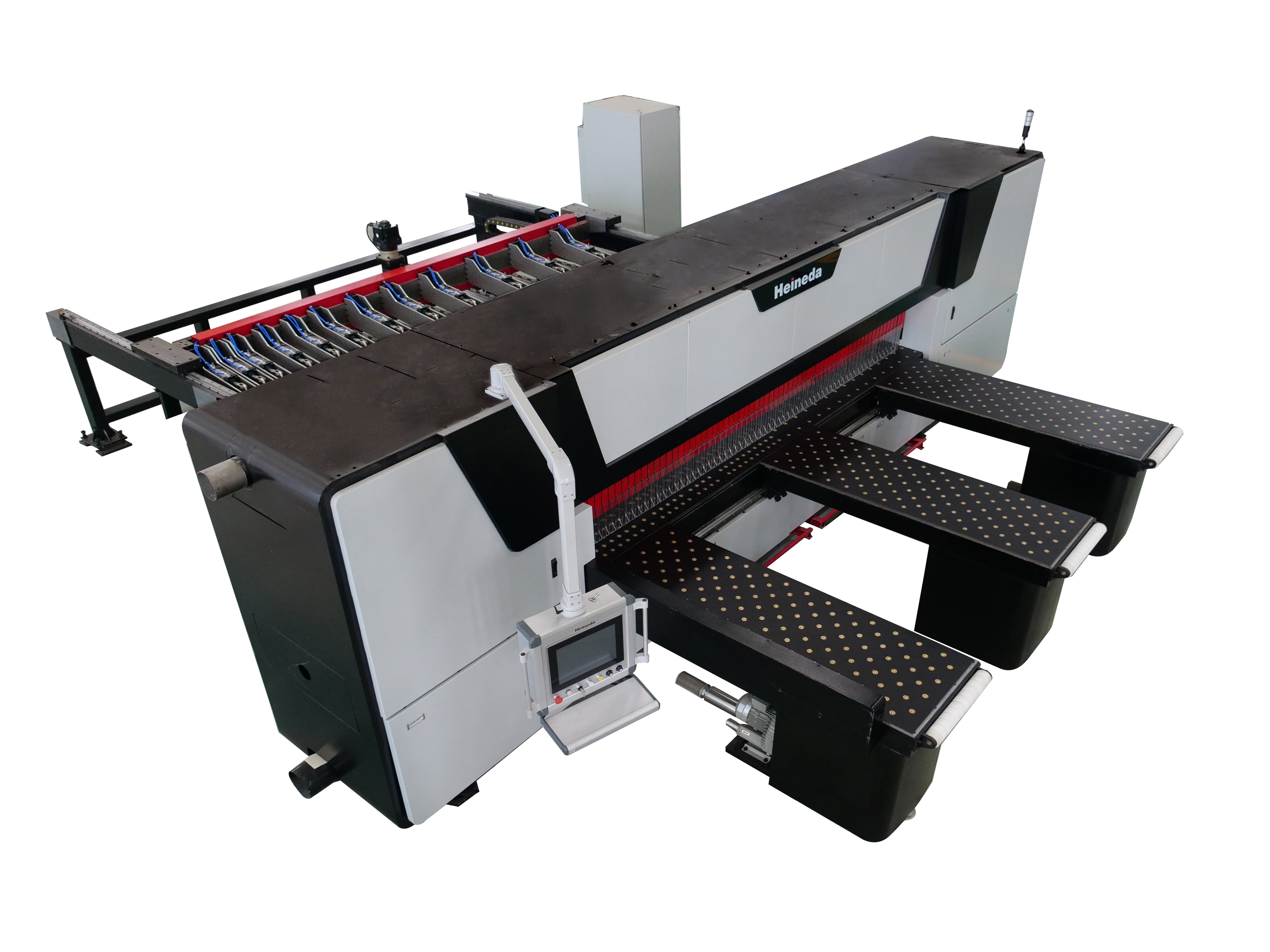

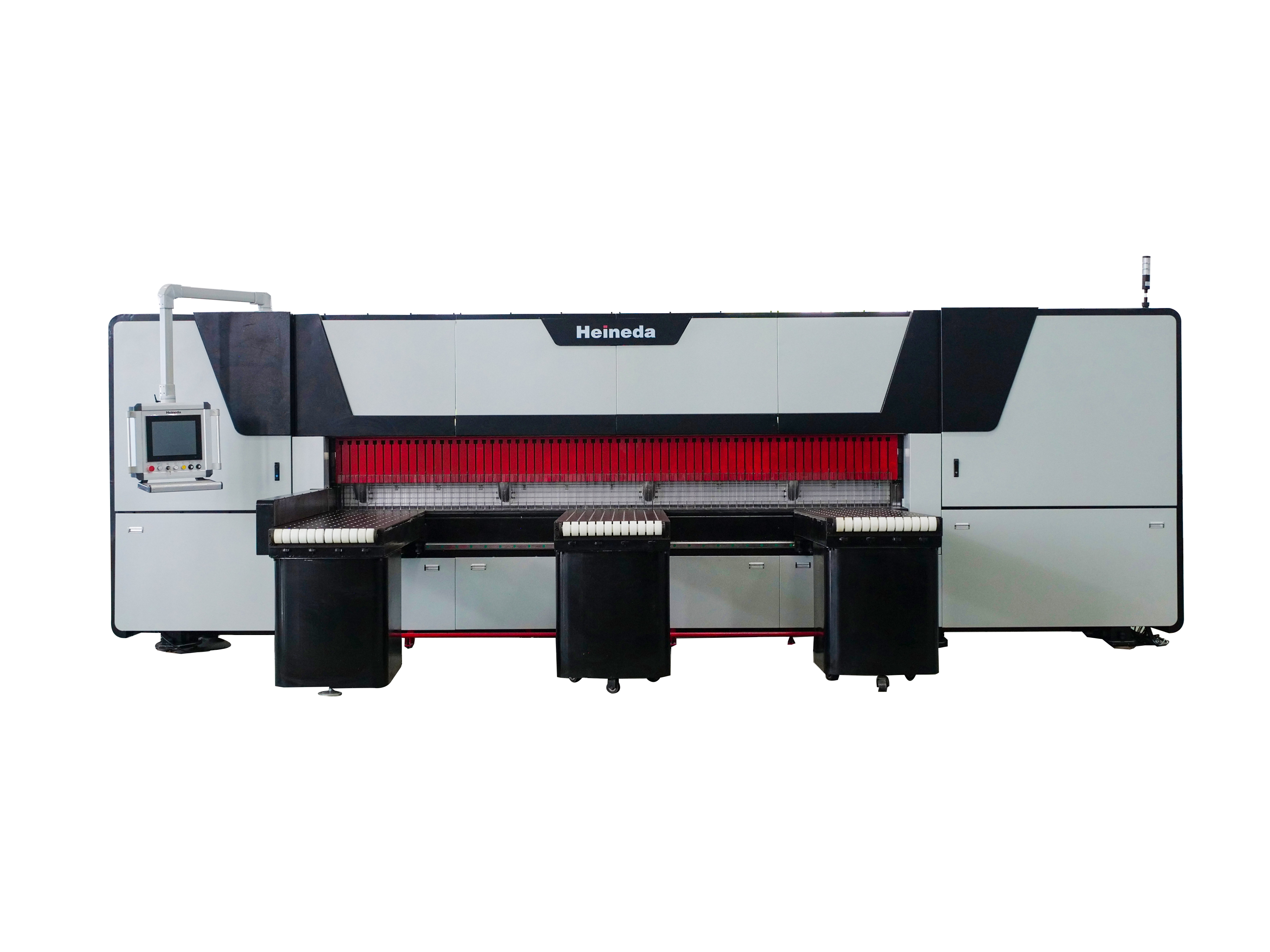

HL-12CNC automatic high-speed precision aluminum plate circular saw machine

The equipment is mainly used for sawing and processing of aluminum alloy sheets, and the equipment has high reliability, high sawing efficiency, low operating cost, complete safety protection, and sufficient static, dynamic rigidity. And use the current most advanced technology to ensure that the system has good dynamic quality. Machine tools, simple operation and maintenance, beautiful modeling, excellent after-sales service.


Availability:



Inquire Add to Basket

Model:
CNC Precision Plate Saw Milling Machine
Brand:
heineda
Code:
ht1510

Product Description

HL-12CNC automatic high-speed precision aluminum plate circular saw machine

Model: HL-12CNC automatic high-speed precision aluminum plate circular saw machine

▲ HL represents the model of Aluminum plate sawing machine in Hantian.

▲ 12 represents the size of the aluminum plate sawing machine, 12 can be sawd in width of 4000 mm.

▲ CNC represents this aluminum plate saw cutting machine for numerical control automatic model.

Technical specifications and parameters

model	HL-12CNC

Sawing capacity	Cutting length	4000mm
	Cutting width	4000mm
	Maximum cutting height	200mm
	Maximum exposed height of saw blade	205mm

Main saw blade	Main saw motor	30KW
	Main saw diameter	Ø700mm
	Main saw shaft core diameter	Ø 38mm
	Main saw speed	2800-3500 r/min
Saw seat	Walking frequency conversion motor	2.0KW
	Forward speed	The fastest 10m/min
	Backward speed	Up to 25 m/min
	Automatic feeding motor	AC 3KW
	Maximum opening height of gripper	210mm
	Use air pressure	≥5.0 kg/cm2
	Height of workbench from ground	950 mm
	Machine size (length×width×height)	8000mmx7035mmx2430mm
	Voltage	380V/50Hz

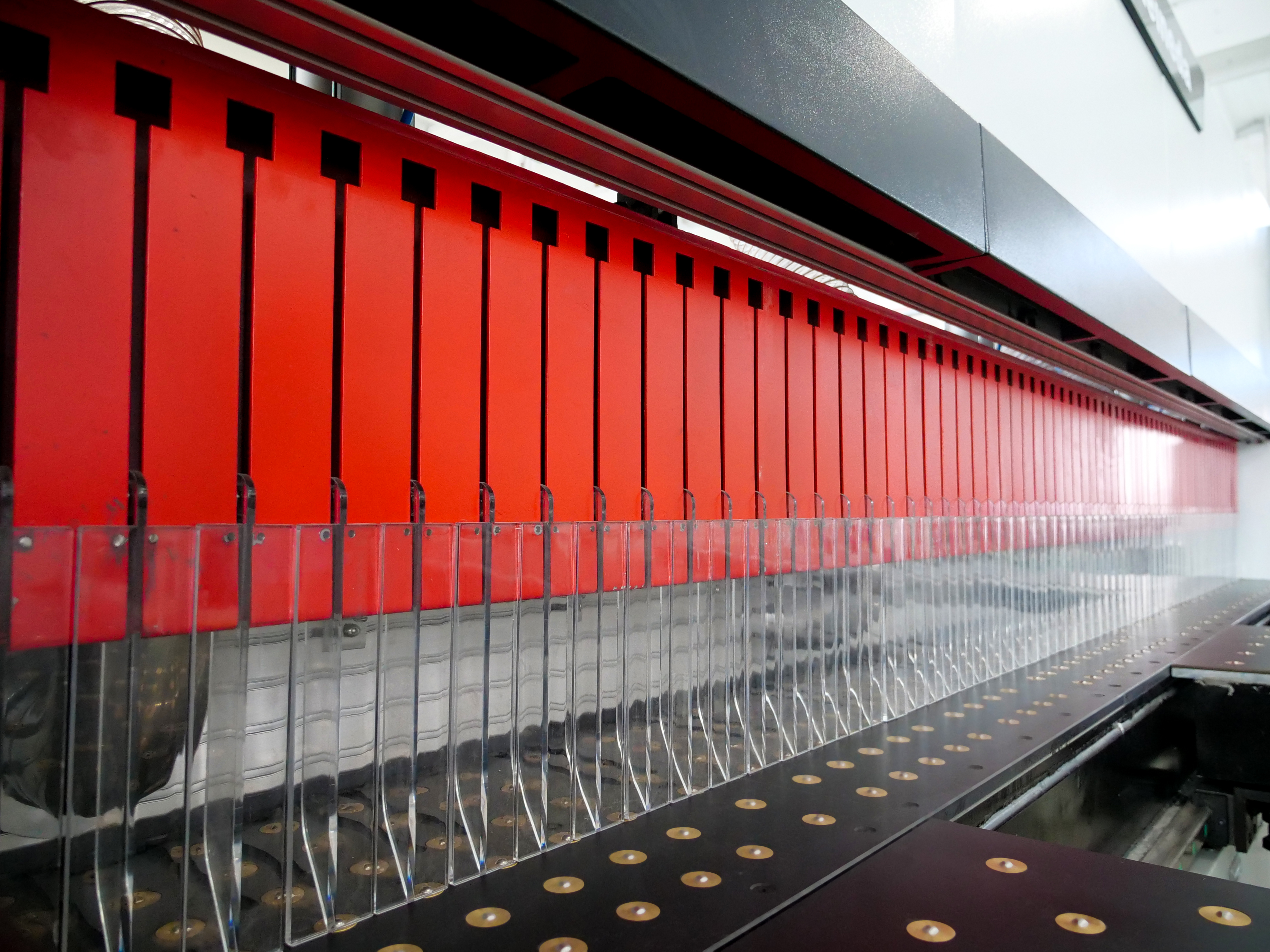

P1027191
